LabPilot

Instruction Manual

Getting Ready for Takeoff

Cold Cure

Flask, scan, and upload, then add flowable acrylic and mill.

Flask preparation

  1. STEP 1

    Gather all flask components.

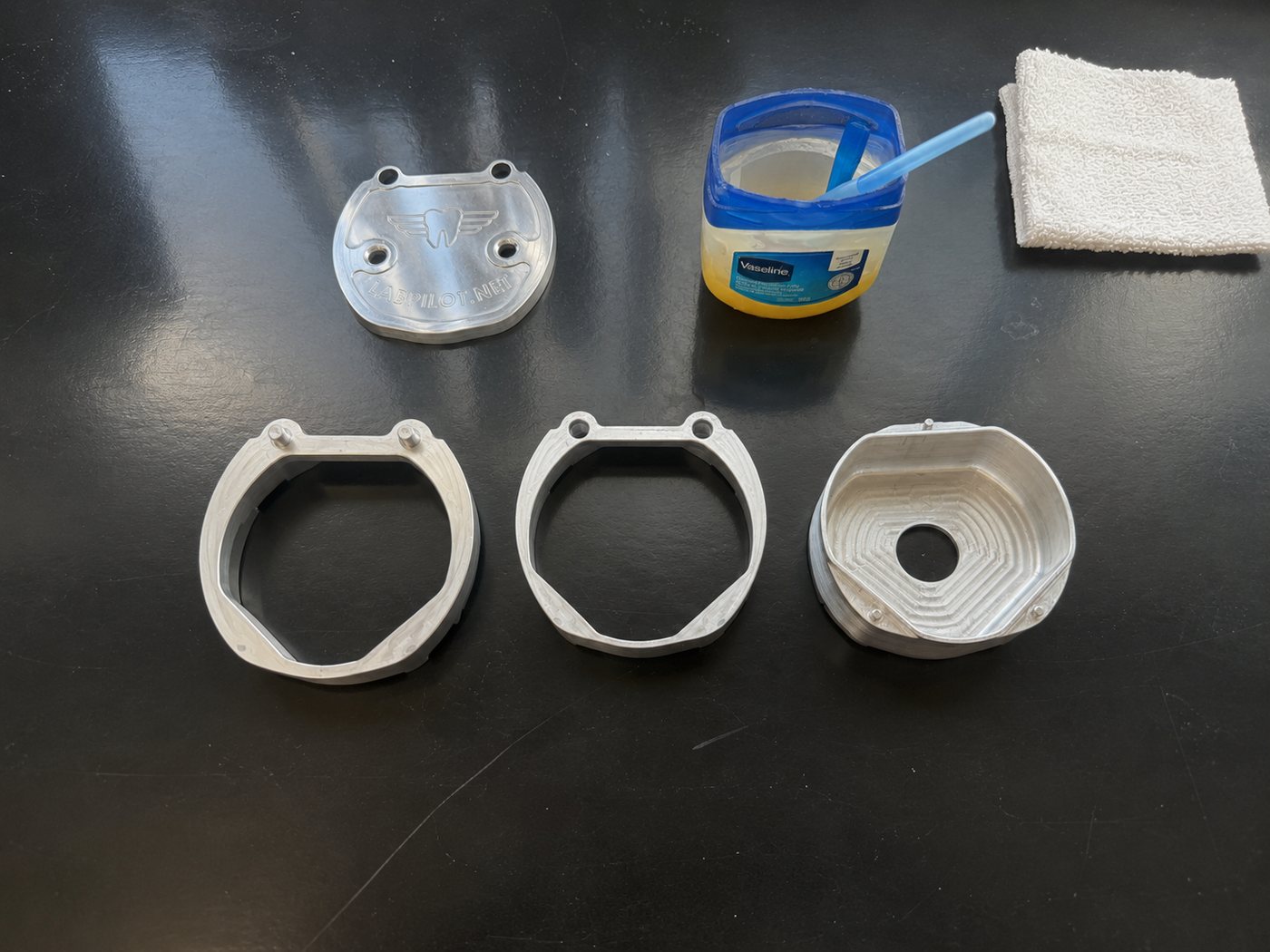

    LabPilot flask lid, rings, base, Vaseline, and a cloth laid out on the bench

  2. STEP 2

    Prepare the internal surfaces with Vaseline.

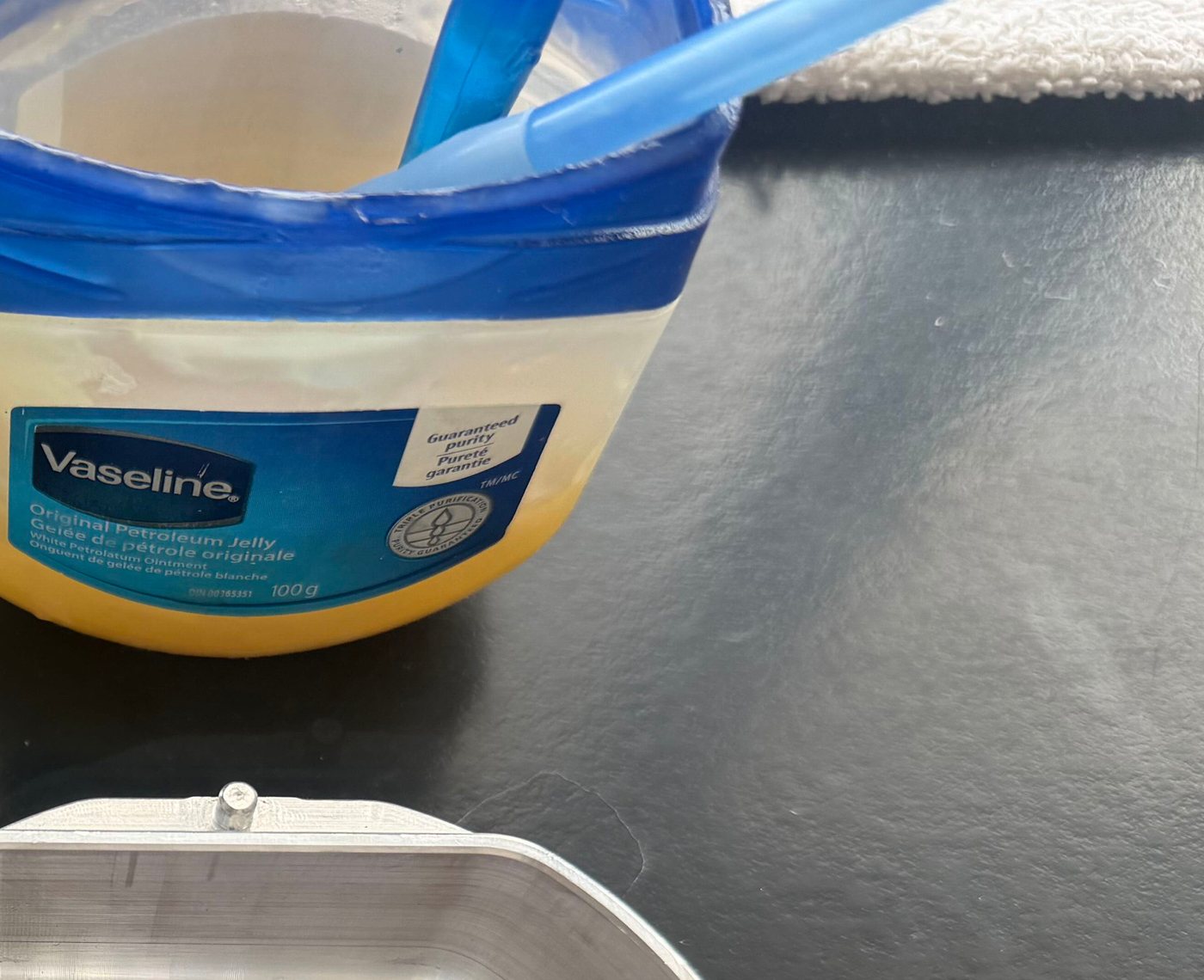

    Open jar of Vaseline with a blue applicator beside a LabPilot flask

  3. STEP 3

    Protect the teeth/prosthetic with Lab Putty (recommended).

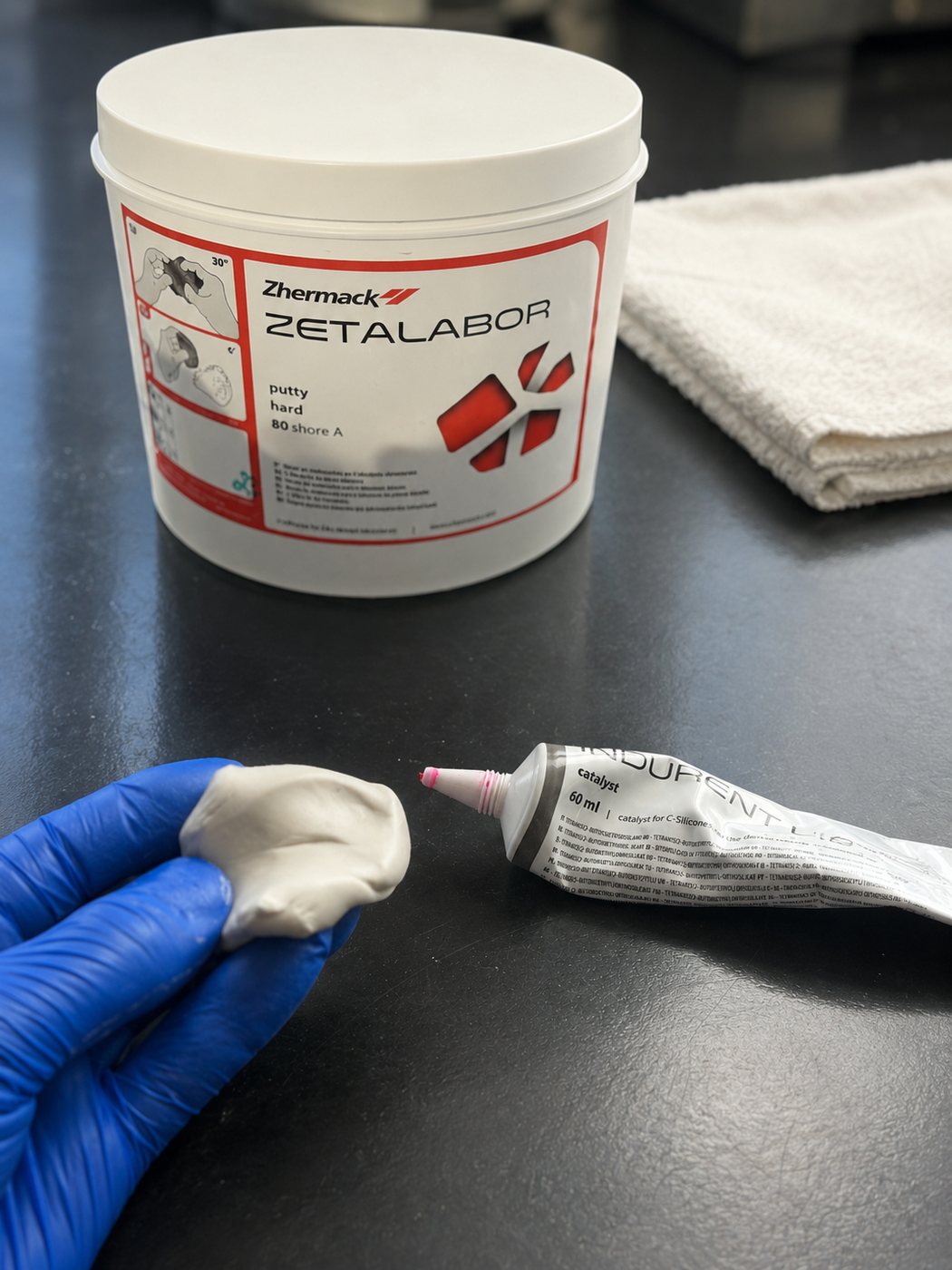

    Zetalabor lab putty tub, Indurent catalyst, and mixed putty on the bench

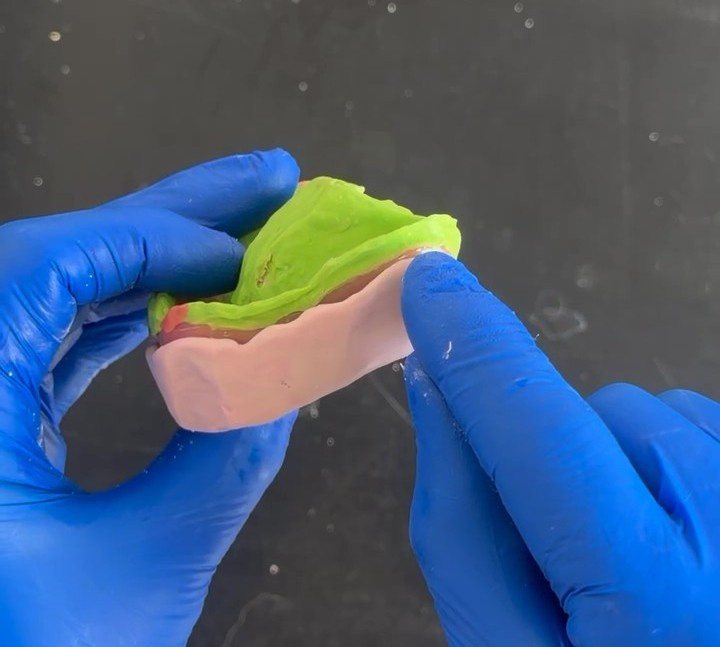

    Gloved hands applying green lab putty over a pink prosthetic

  4. STEP 4

    Mix the plaster and/or stone according to manufacturer instructions.

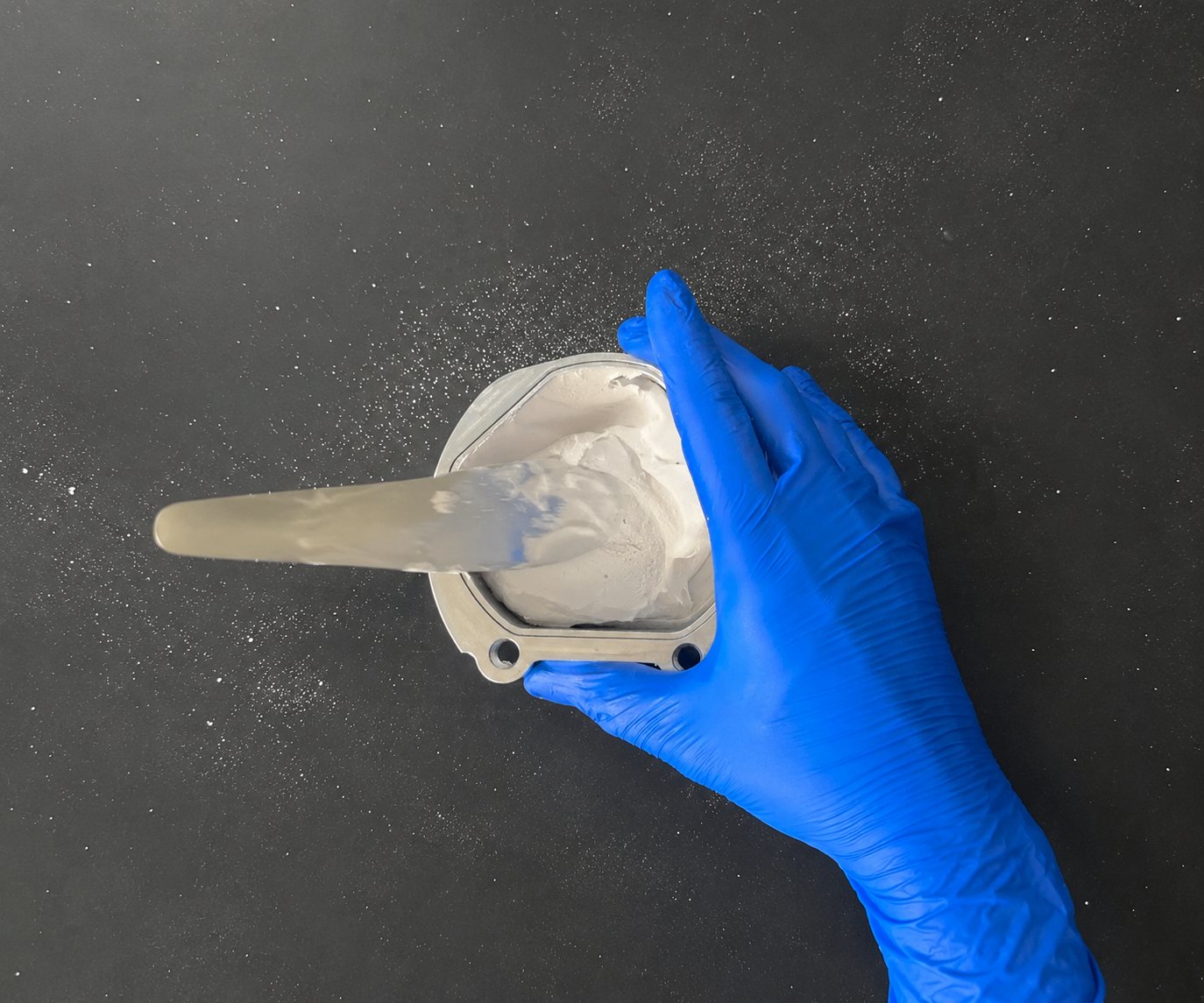

    Gloved hand mixing white plaster in a LabPilot flask with a spatula

  5. STEP 5

    Place the Flask Adapter onto the Flask Base.

  6. STEP 6

    Fill the Flask bottom with plaster/stone.

  7. STEP 7

    Position the prosthetic tissue-fitting surface facing upward inside the flask.

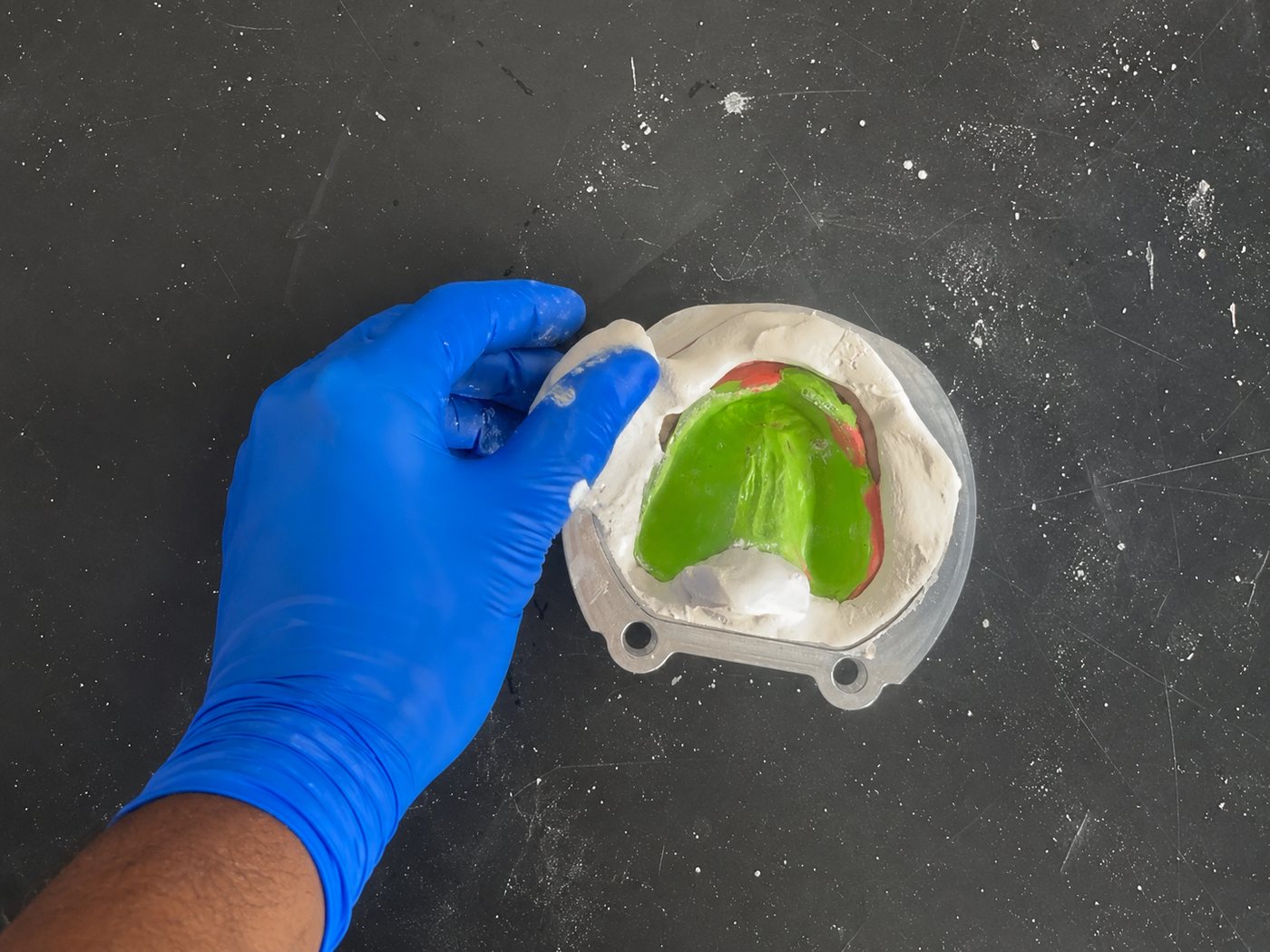

    Gloved hand seating a green-protected prosthetic into plaster in the flask

  8. STEP 8

    Position the prosthetic within the container, not above.

Scan & upload

  1. STEP 9

    Remove any excess plaster/stone.

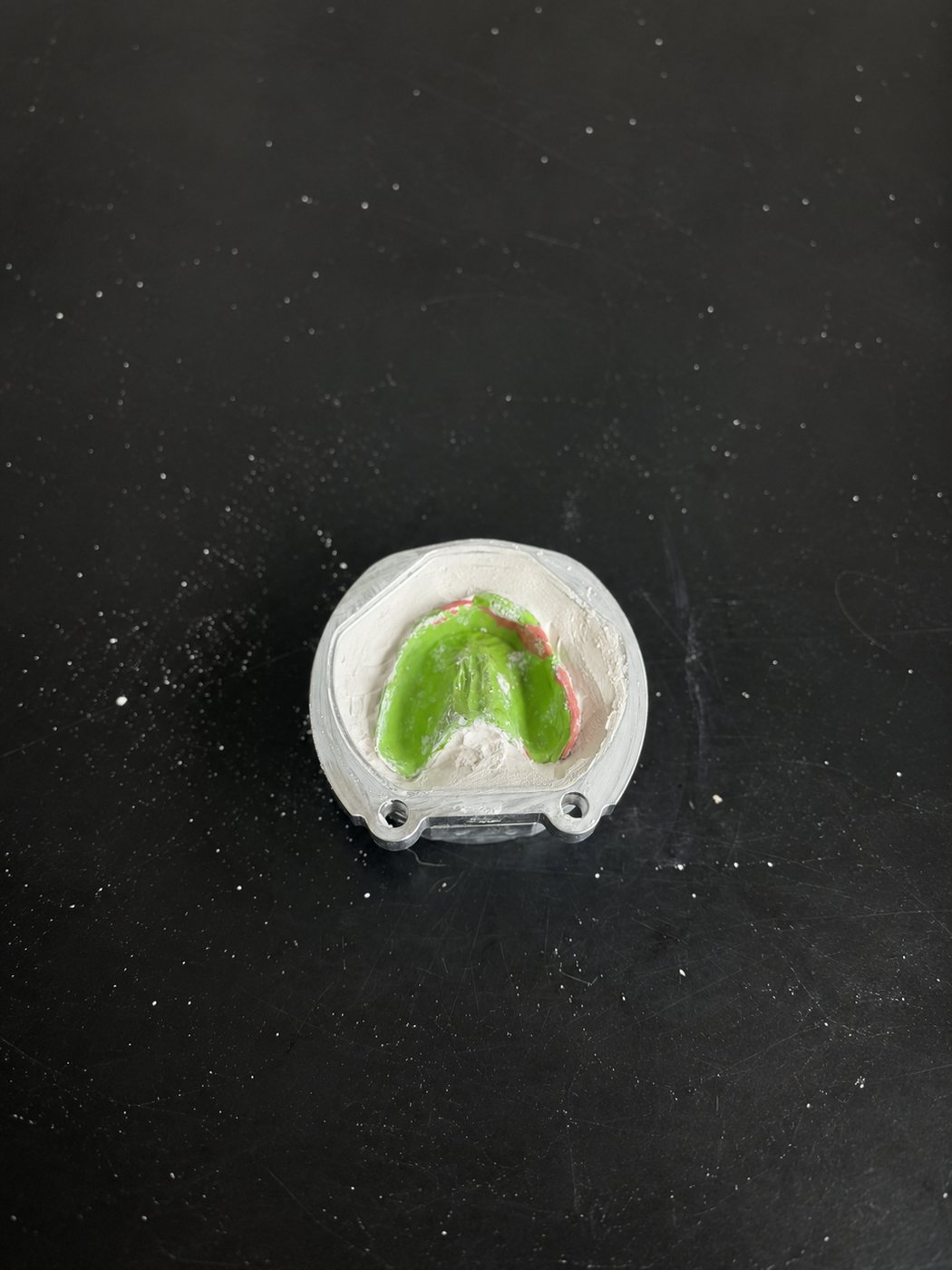

    Prosthetic seated in plaster inside the flask after excess is cleared

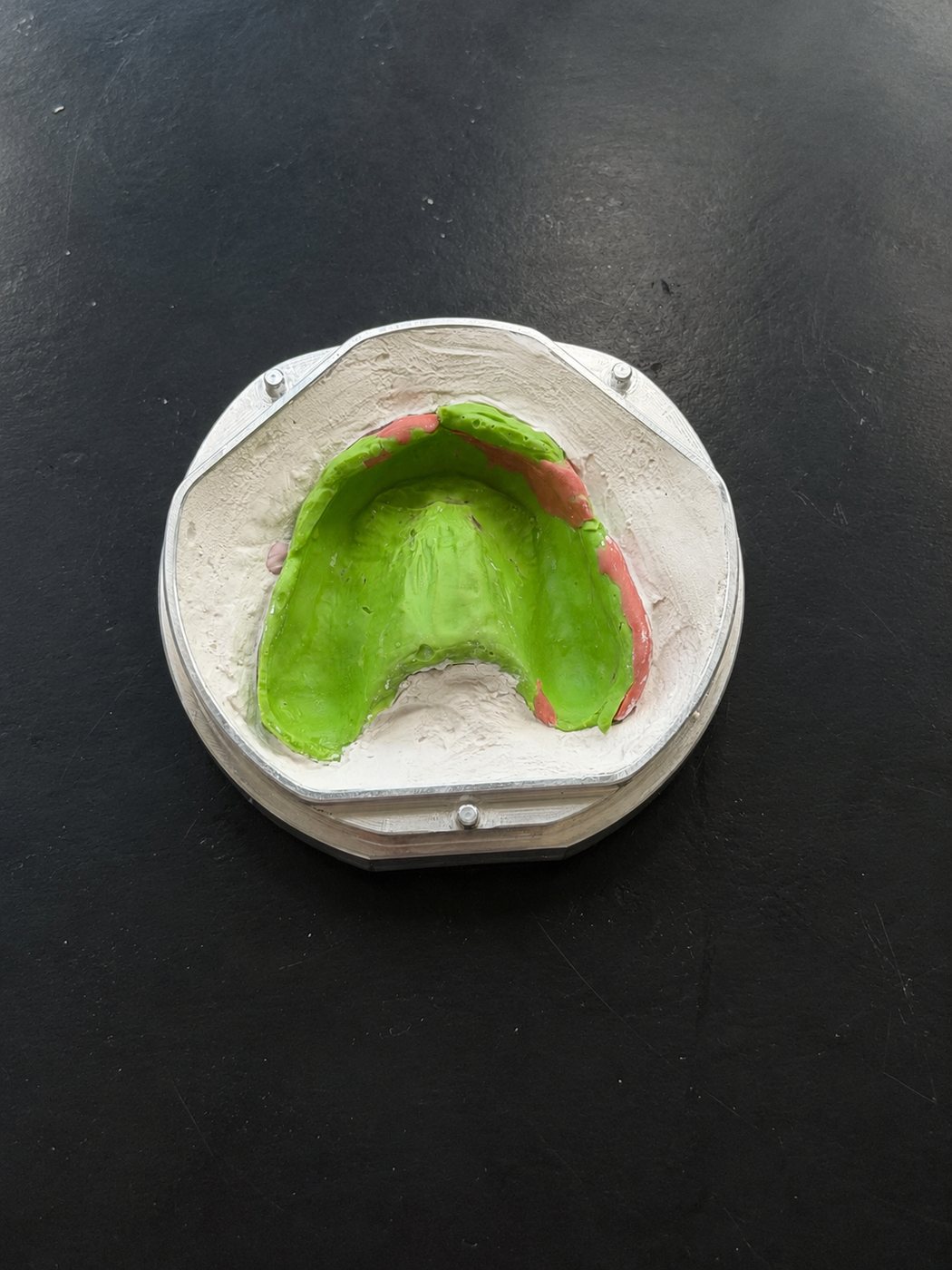

    Flask with alignment posts, showing the prosthetic flush in the plaster

  2. STEP 10

    Remove the Flask Adapter from the Flask Base and prepare for scanning.

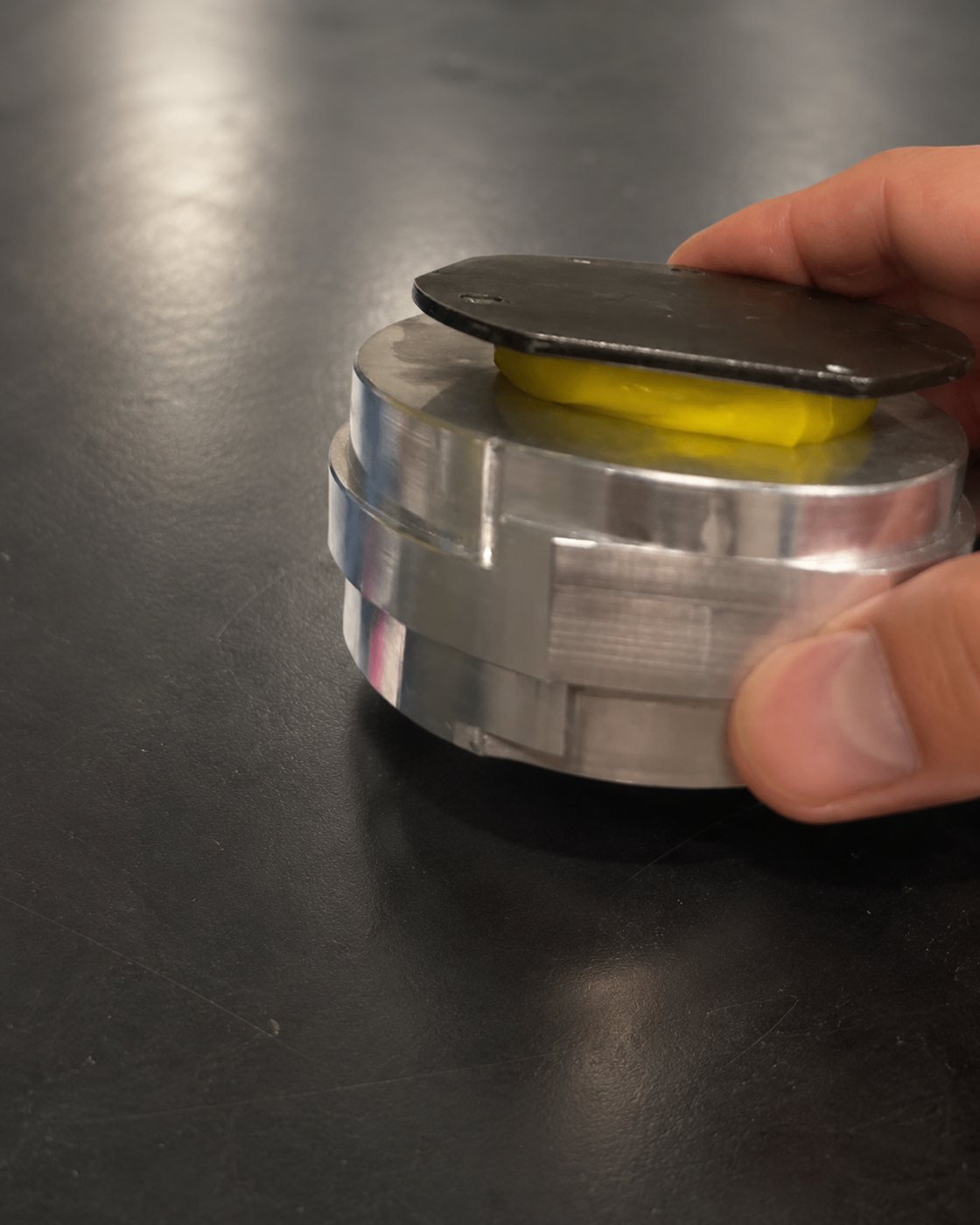

    Hand separating the flask adapter from the flask base

  3. STEP 11

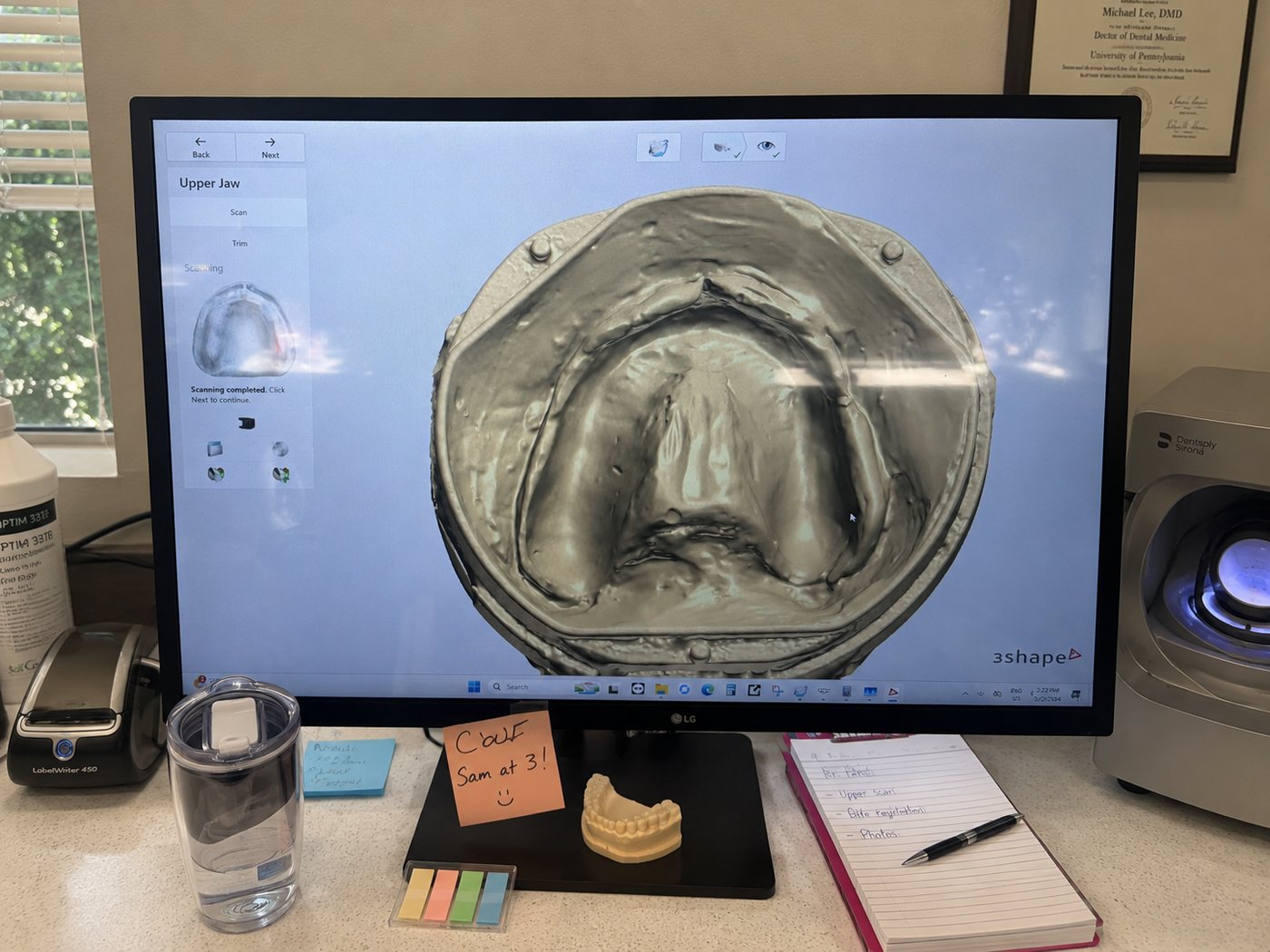

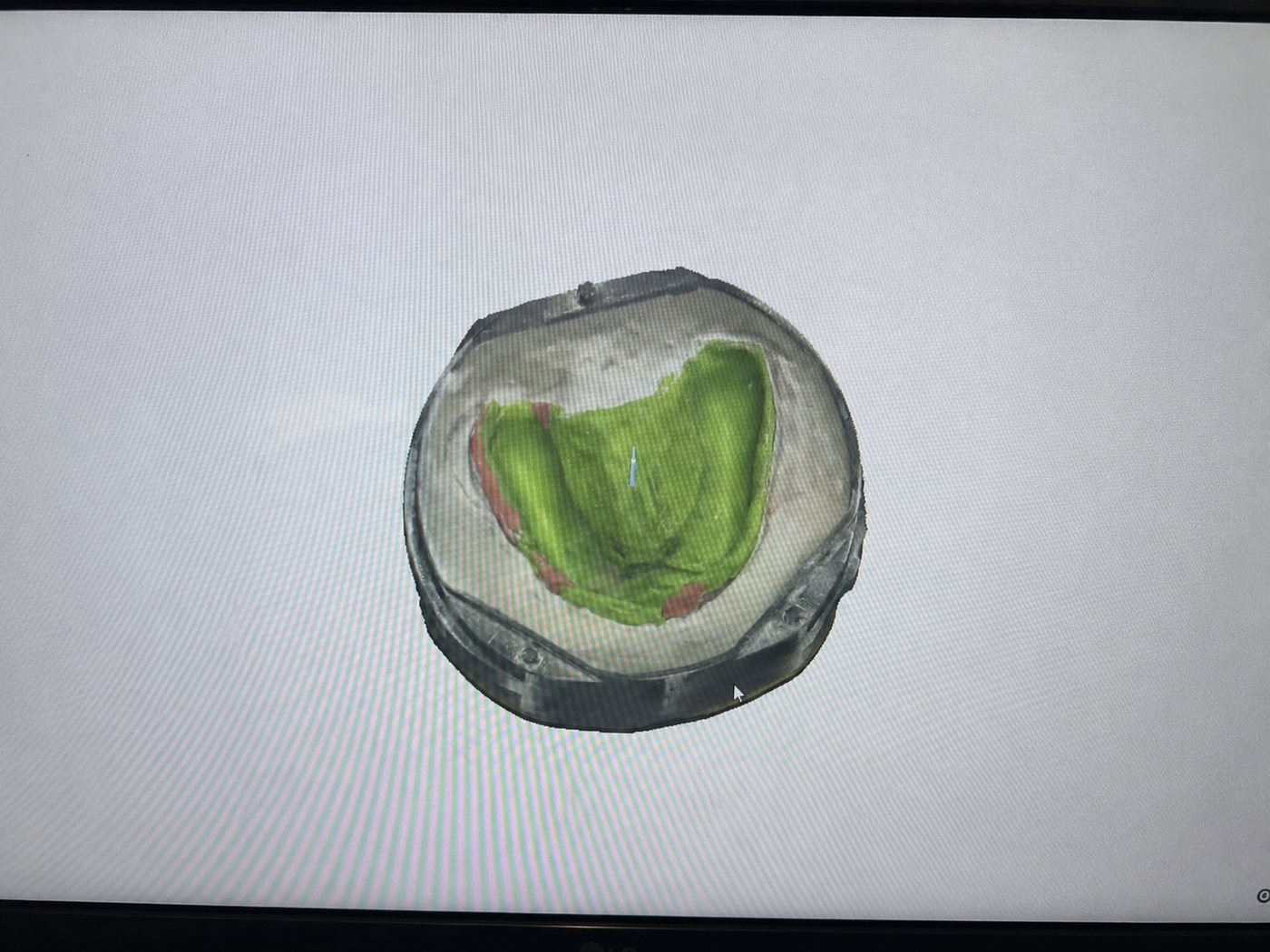

    Scan the flask, ensuring all three alignment posts are clearly visible.

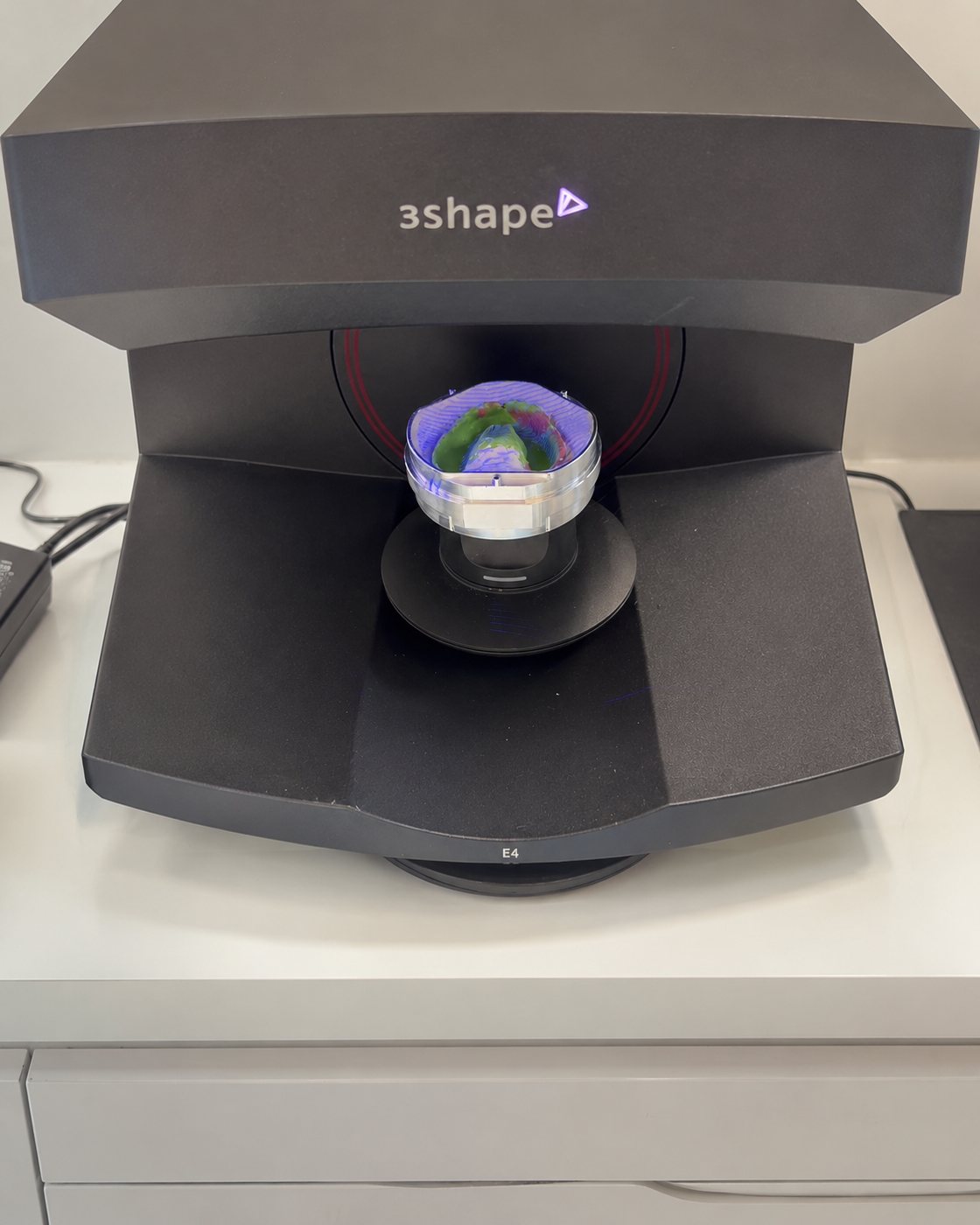

    LabPilot flask in a 3Shape E4 scanner during scanning

Fill & mill

  1. STEP 25

    Place the flask case into the holder/mill.

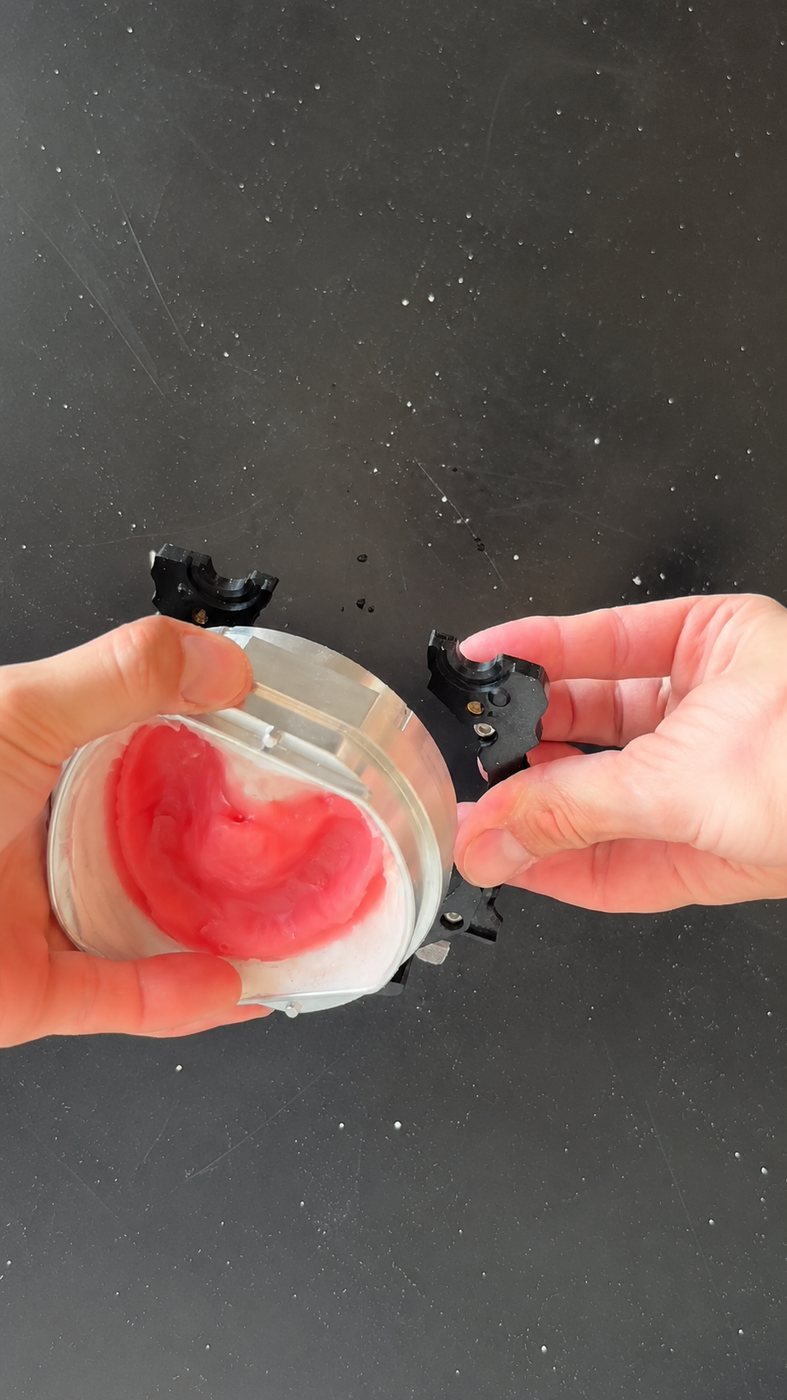

    Hands attaching the flask case to the mill holder

  2. STEP 26

    Take the machine file and play it on the machine. If using a Roland machine, ensure you are utilizing VPanel.

You've now completed the LabPilot Process.
